MODEL ALIGNMENT & VISUALIZATIONDevelopment preview · identifying labels removed
01Import
Bring in your dental scans.
02Align
Define orientation and references.
03Mount
Position on a virtual articulator.
04Export
Take models into your next workflow.
01 / INTRODUCING ALIGN
Set the orientation. Prepare the next step.
One focused tool for scan alignment and virtual articulator mounting.
01
SUHFORM Align
In development
Bring your scans into a consistent frame of reference.
Orient dental 3D models, define reference points, and prepare their placement on a virtual articulator.
Scan orientation
Reference points
Virtual mounting
Explore the scope +
Align is being developed around STL, PLY, and OBJ dental models. The final feature set, file support, and system requirements will be confirmed at launch.
What Align is being built to do
Automatic front alignment
Orient upper and lower scans using the occlusal plane and midline.
Flexible origin and axes
Choose an origin and prepare models in Y-up or Z-up coordinates.
Articulator placement
Position models relative to an articulator reference layout.
Hinge-axis opening
Adjust model opening around a hinge-axis reference.
Export for the next step
Prepare transformed STL models and accompanying transform data.
Align is not yet available for public use. Release details will follow.

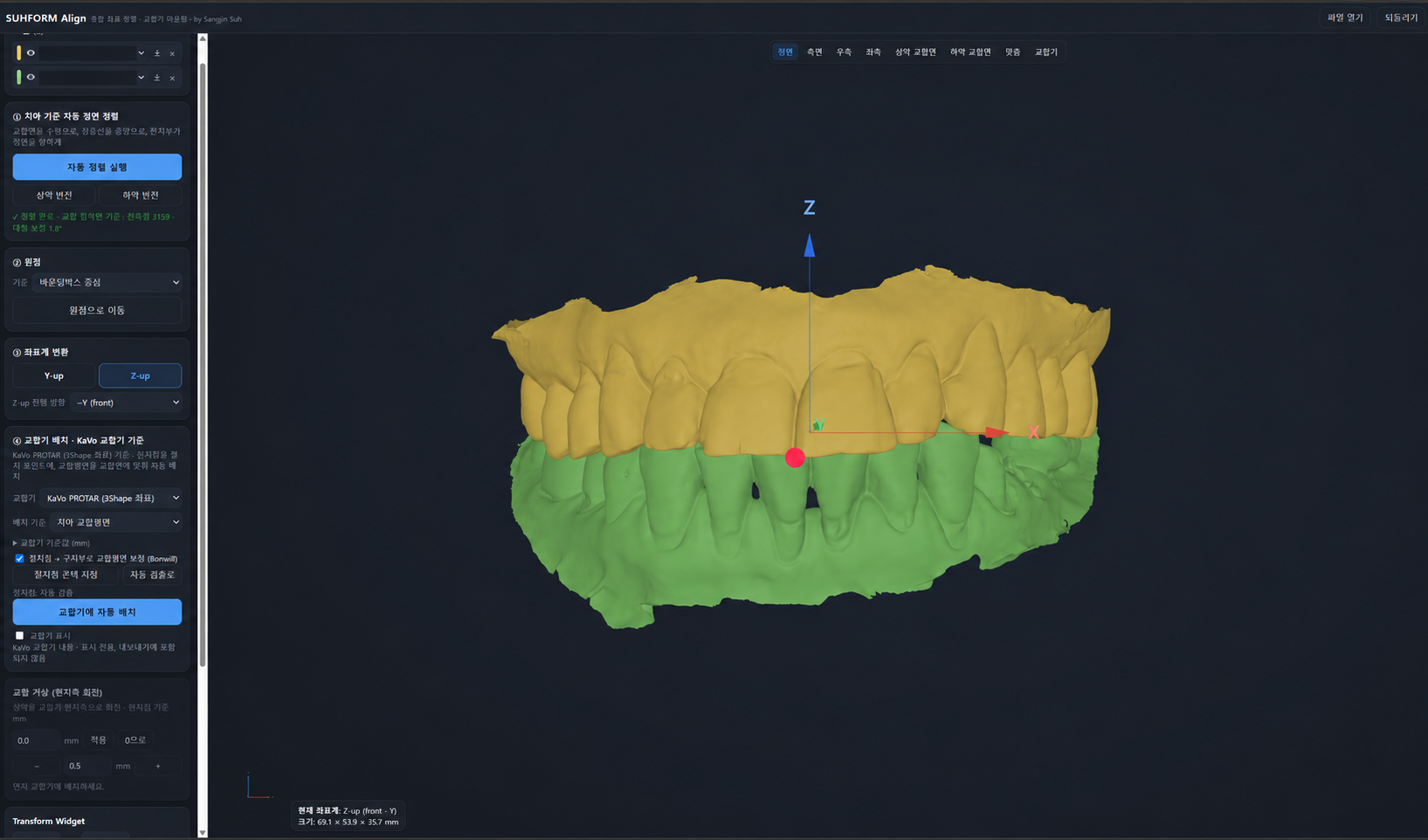

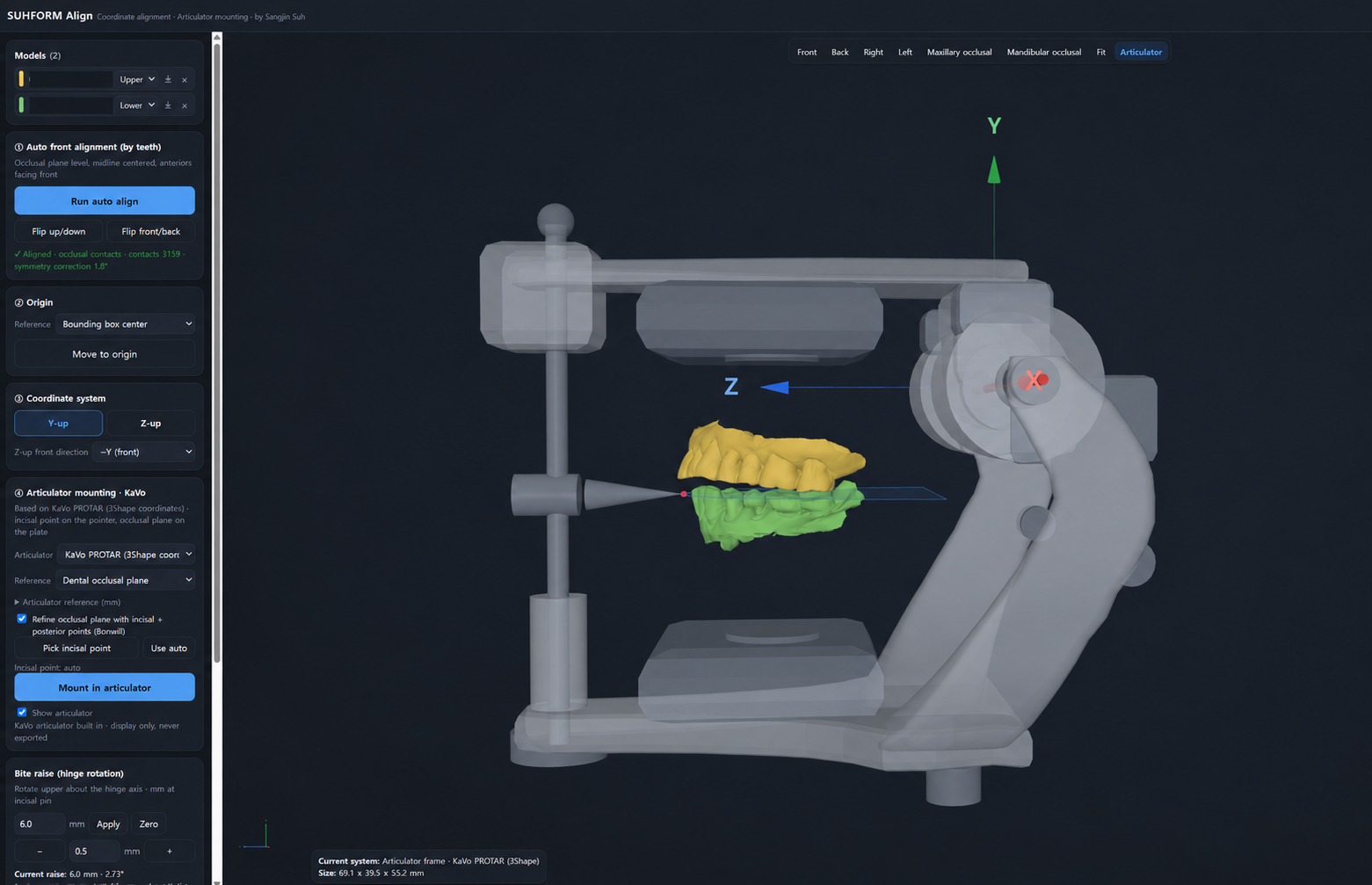

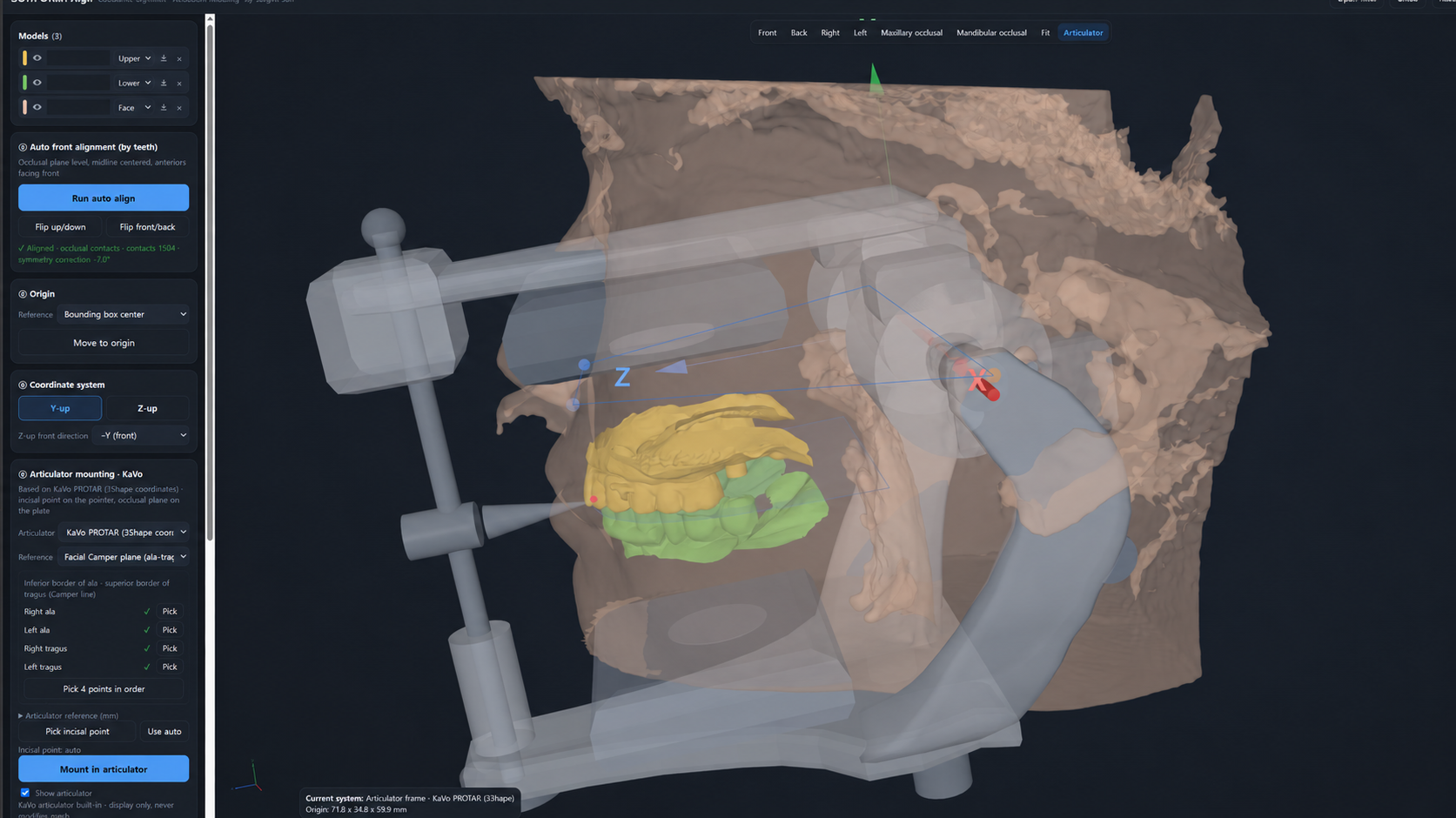

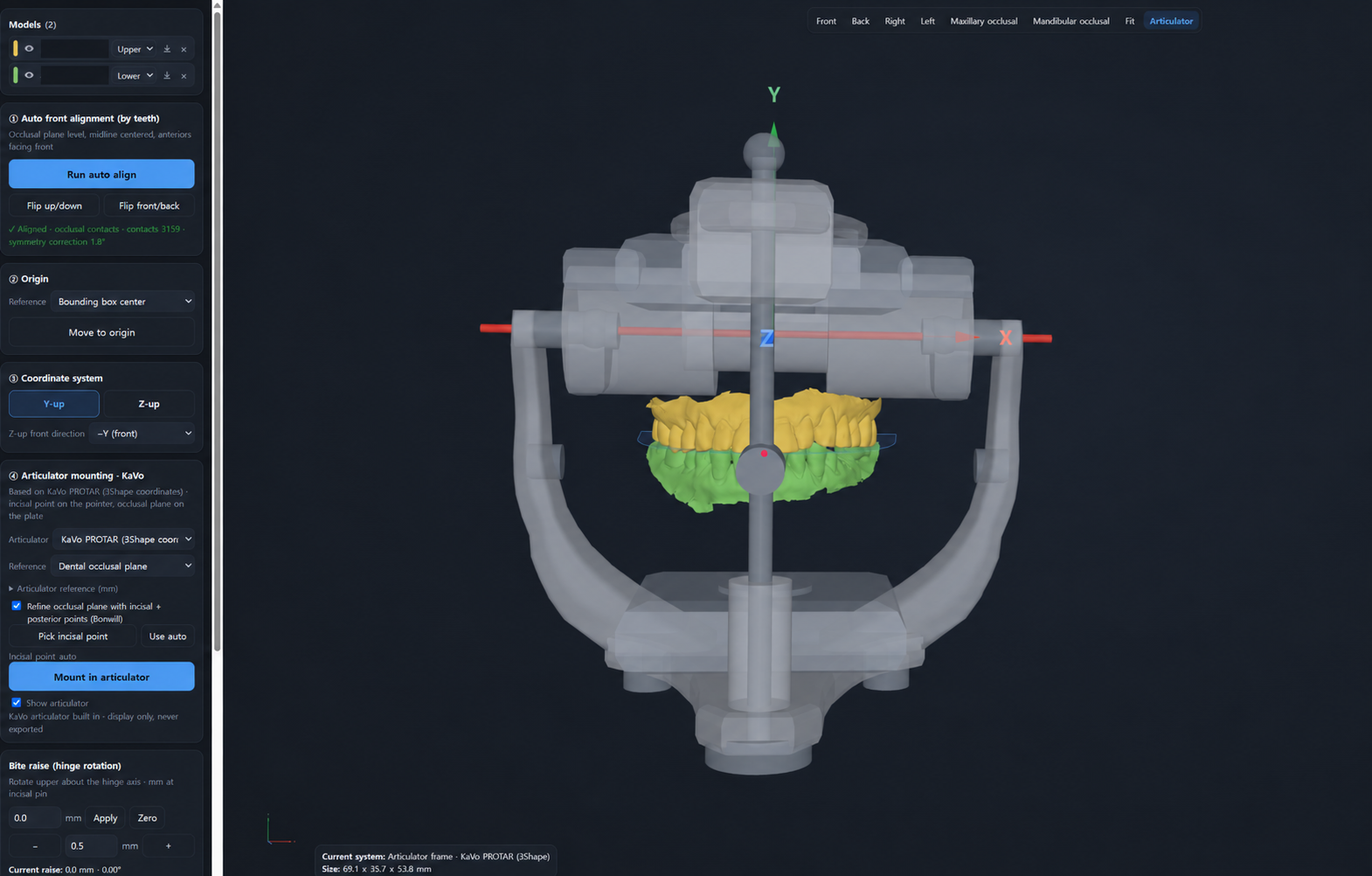

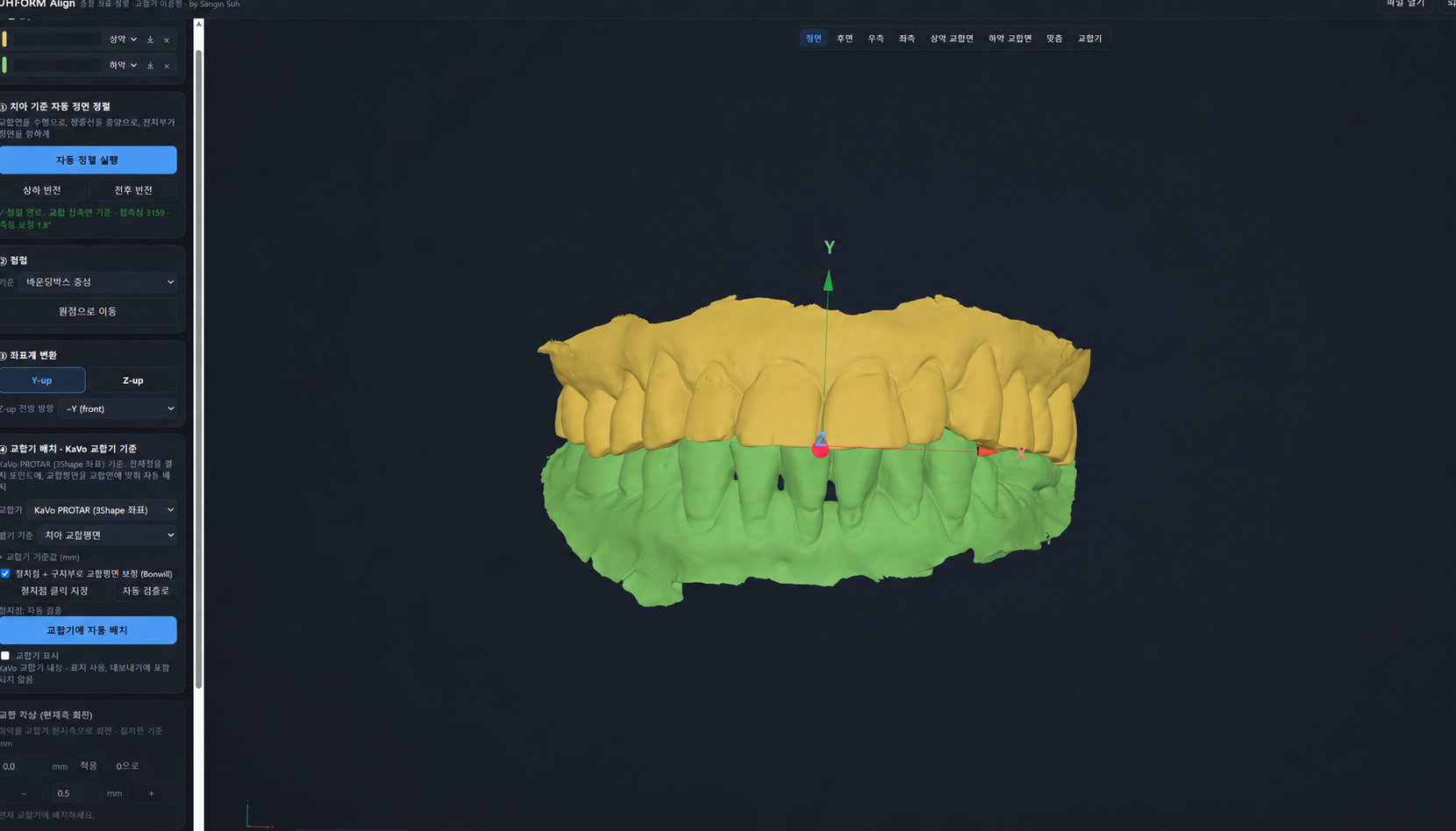

Automatic alignmentOrient upper and lower scans using the occlusal plane and midline.Development preview · identifying labels removedVirtual articulator mountingPosition aligned models in an articulator reference frame.Development preview · identifying labels removedHinge-axis bite raisePreview model opening around the hinge axis. Shown: 6.0 mm.Development preview · identifying labels removedY-up / Z-up coordinatesSwitch the coordinate convention for your next modeling step.Development preview · identifying labels removed
02 / PRODUCT FAMILY
A focused tool for each step.
Align and Crown are in development. Model and CT are planned. Release dates are not yet set.
In development
SUHFORM Crown
Dental crown design, supported by a tooth library. A dedicated app for the restorative design step.
Not yet available for public use.
Planned · Development not started
SUHFORM Model
Mesh repair and model preparation for dental practices, labs, and model printing. Clean up scans before Align or Crown, or prepare printing models as a standalone workflow.
CBCT and DICOM processing, scan registration, and bone reference points. Planned as a separate app connected to Align through file exchange.
SUHFORM MODEL / PLANNED SCOPE
Prepare the mesh. Shape the model.
A standalone tool for scan cleanup and printing-model preparation.
Inspect & repair
Highlight holes, flipped or overlapping faces, disconnected fragments, and non-manifold edges. Fill defects while preserving designated margin regions.
Remesh
Create more uniform triangles with a target edge length, while preserving sharp features and protected regions.
Make solid
Combine overlapping meshes into one connected, closed solid and remove internal overlapping faces and shells.
Hollow
Create a hollow model with a defined wall thickness to reduce printing resin use. Drain-hole options are under consideration.
Boolean & extrude
Union, subtract, or intersect meshes. Extend boundaries to support model bases and thickness creation.
Register & compare
Start with corresponding points, refine the surface match, and inspect differences with a color-coded deviation map.
Planned file workflow STL / PLY / OBJ input. STL output with original coordinates preserved, plus a JSON operation history.
Local processing by design Planned to process scan files in your browser without uploading patient files to a server.
Model is planned and is not available yet. Protection controls, hollowing defaults, extrusion options, and registration export behavior remain to be finalized.
Long-term vision
SUHFORM Studio
A future workspace bringing SUHFORM tools together. Individual tools first. A connected workspace over time.
03 / BUILT FROM PRACTICE
Developed by a clinician. Shaped by real work.
SUHFORM is an independent software brand developed by Sangjin Suh. Each tool begins with a practical need encountered in digital dental workflows, then develops around a focused modeling task.
01
Practical purpose
Reference setting, repetitive tasks, and connected data. Practical problems guide what we build.
02
Local processing by design
Our aim is to process patient files on your device, in the browser. Each product’s data handling will be documented before release.
03
Focused tools, connected steps
Clear roles for each app, with file-based exchange where workflows meet.
04 / ACCESS
Preparing for the web.
SUHFORM Align will be the first product introduced. Pricing and availability will be announced later.
General access
Web-based access
We plan to offer paid access to SUHFORM tools through this website. Plans, included features, and support terms will be published before launch.
Pricing and subscriptions are being prepared
Implant Master Class members
Member access
A complimentary access channel is planned for eligible Implant Master Class members. Verification, included products, and access periods will be announced separately.
Member access is being prepared
Sign-in, checkout, and app access are not available on this site yet.
